Inclusive workplace systems - Inclusion with KARL

Versatile. Barrier-free. Durable.

The requirements for KARL table systems are very high due to the different needs of the users. Individual, customer-specific adaptations are easily realised at KARL, from the technical drawing to the fully tested workbench.

The aim is to enable people in a restricted situation to work effectively and comfortably in just a few simple steps with a highly functional and ergonomic table system.
The focus is on adaptable solutions that make it easier for people to work while standing, sitting or using a wheelchair and offer maximum safety to prevent accidents at work.

Ergonomic support.

Examples of customised solutions to support fatigue-free working can be found in the adjustment of the optimum working height of the table systems, footrests with tilt adjustment or custom-made table tops.

The table tops of the KARL systems play an important role in the utilisation of the tables according to individual requirements. Thanks to the standardised use of robust and easy-to-clean hard laminate surfaces, it is possible to change tasks at the workbench easily and without disruption.

Flexibility as a standing, sitting or wheelchair workstation.

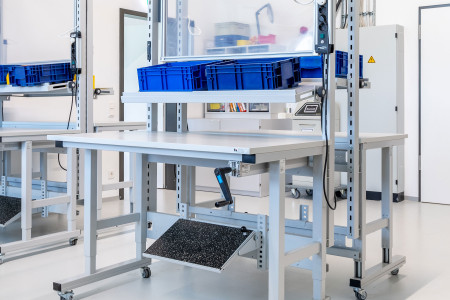

Mobile table

Convenient room and process rearrangement thanks to swivel castors
4 swivel castors mounted on the foot sections of the table
2 swivel castors are lockable

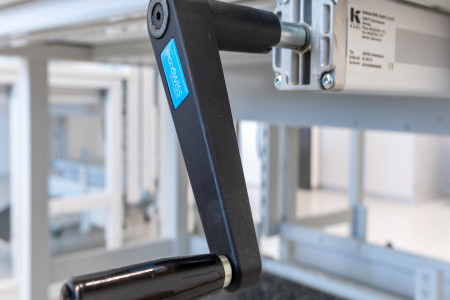

Height-adjustable table frame with hand crank

Sturdy tubular steel construction with height levelling elements in the foot section
Height adjustment by hand crank from 740 to 1140 mm
Optional: height-adjustable table frame with electric motor

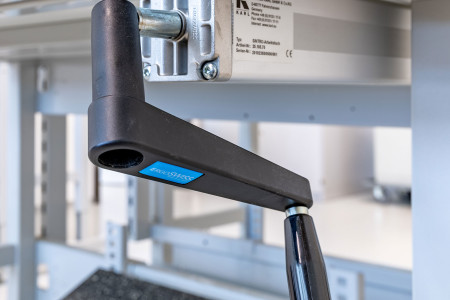

Hand crank can be folded back for safety

Avoidance of unwanted height adjustment
Optional: Height-adjustable table frame with electric motor

For different body and working postures.

Optimum working height and plenty of legroom.

Infinitely tiltable shelf

as height-adjustable adaptation on the vertical strut with grid perforation
Infinitely variable tilt adjustment from 0° to 30
75 mm variable depth
450 mm depth with a maximum surface load of 50 kg
20 mm high toe board, optionally at the front or rear

Multifunctional arm VARIO

Ergonomically optimised arrangement thanks to 3 self-locking joints
Variable length adjustment of the two swivel arms
Height-adjustable mounting on the vertical strut
Choice of upright or suspended adaptation options:
swivelling storage shelf, flat screen holder, support rail for

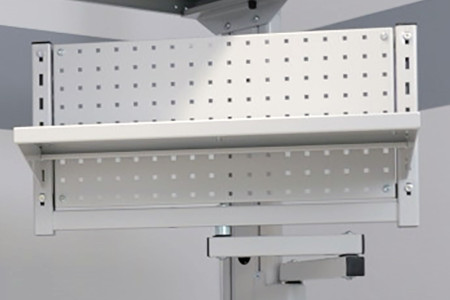

Grab trays, universal frame with storage shelf or tool holder wall

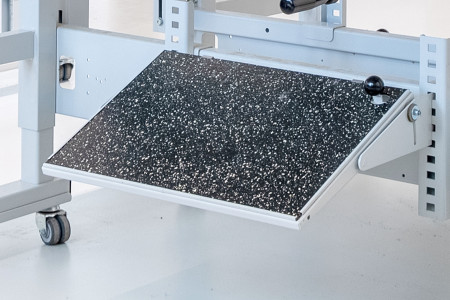

Infinitely adjustable footrest

Variable height attachment of the footrest in the footrest catches
Infinitely adjustable footrest inclination via foot switch

Navigation

Supporting everyday working life in workshops for people with disabilities.
