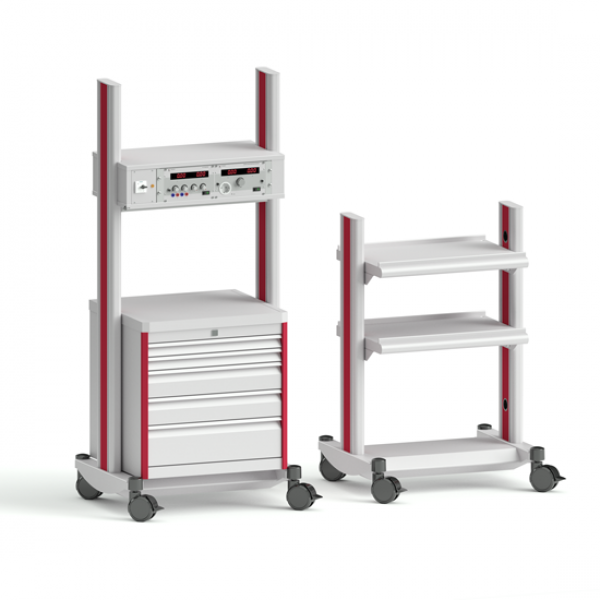

Material trolley for laboratory & assembly - QUADRO
Download
QUADRO-CAR
As a mobile test station
or for the provision of materials
- 4 swivel castors (Ø 100 mm), 2 swivel castors with brakes
- Base frame: 735 x 600 mm (width x depth)
- Clear width: 620 mm
- 2 different heights: 1100 mm and 1700 mm
- ESD-compliant as standard thanks to the exclusive use of conductive materials
- Total weight: max. 200 kg
Optional:
- Bottom flap in the foot section to accommodate socket strips

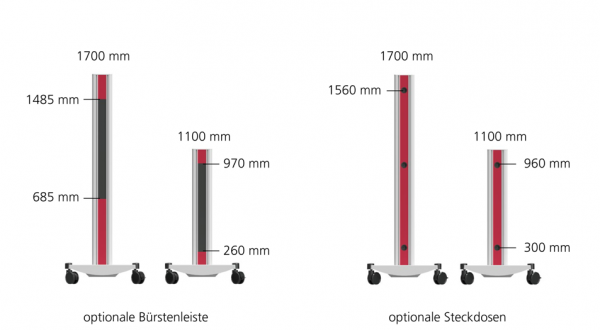

- 800 mm long brush strip for cable entry on the inside of a QUADRO column
- Direct passage from the cable duct of the QUADRO column into the hinged base flap, also for larger connectors such as angled Schuko plugs

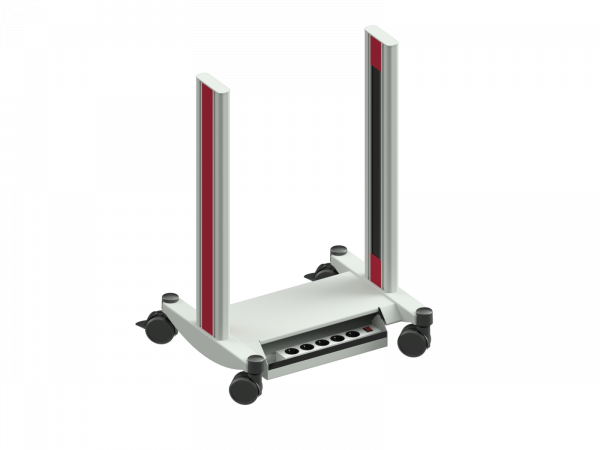

- Bottom flap including 5-socket power strip with 1.5 m mains cable
- A QUADRO column with flush-mounted, integrated, ready-to-connect wired sockets, with connection cable incl. plug routed into the hinged base tray, ideal for supplying power to electrical appliances on different levels
- 800 mm long brush strip on the inside of the other QUADRO column for cable entry
QUADRO columns
- QUADRO column made of aluminium as a functional and visual basic element
- Integrated brush strips for cable routing
- Integrated Schuko sockets on the inside
