Basic element including cable tray with flap

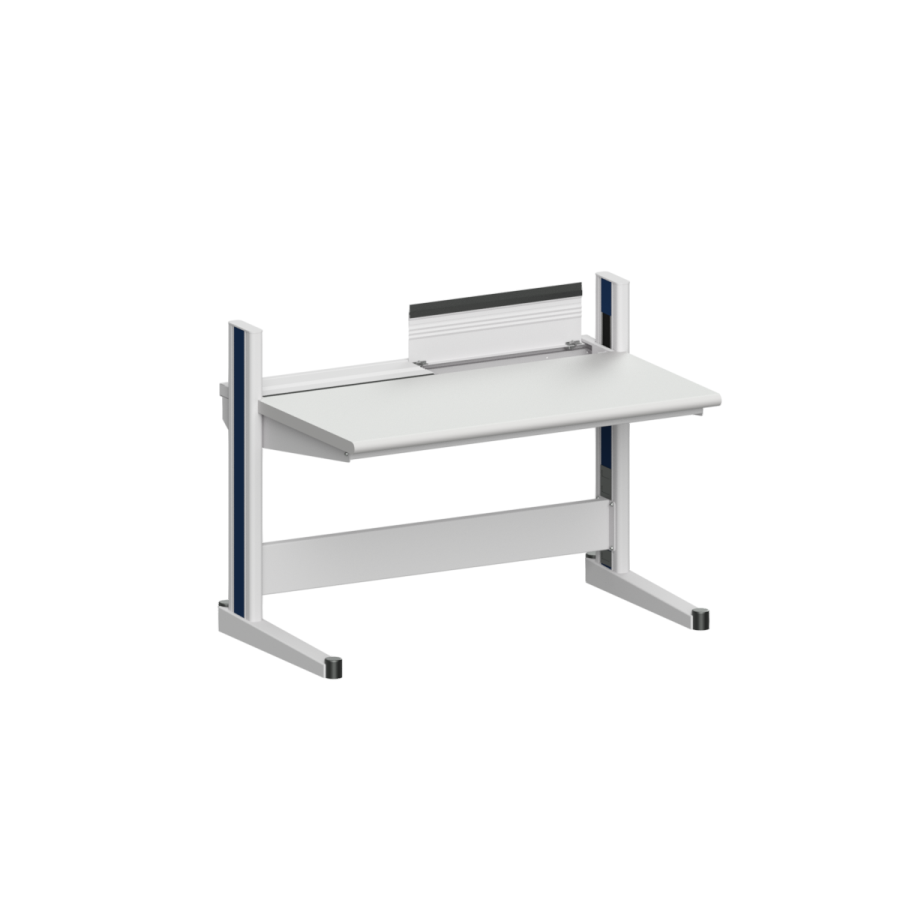

WORK TABLE QUADRO
Item number:
10.305.13
Width:
1300 mm
Height:
1000 mm
Color:
light gray (RAL 7035), decor parts: cobalt blue (RAL 5013)
Dimensions:
1300 x 880 x 1000 mm (WxDxH)
Features:
Stepless height adjustment
Description:
- consisting of:
- 1 table top 1300 x 880 x 40 mm (WxDxS), hard laminate (EN 438) with postforming edge at the front
- Cable tray in the rear area of the table top, easily accessible thanks to hinged covers
- Brushes embedded in the cover for easy cable routing when closed
- Side openings for access to the QUADRO columns
- the cable tray with flap can be equipped with an electrical insert strip for individual equipping with insert plates for power, data and media supply
- Table top depth: 650 mm
- 2 long foot sections
- 2 QUADRO columns 1000 mm high, with brush elements on the inside for cable entry
- 1 cross connection
1
Features
Dimensions
1300 x 880 x 1000 mm (WxDxH)
Height
1000 mm
Width
1300 mm
Color
light gray (RAL 7035), decor parts: cobalt blue (RAL 5013)
Description
- consisting of:
- 1 table top 1300 x 880 x 40 mm (WxDxS), hard laminate (EN 438) with postforming edge at the front
- Cable tray in the rear area of the table top, easily accessible thanks to hinged covers
- Brushes embedded in the cover for easy cable routing when closed
- Side openings for access to the QUADRO columns
- the cable tray with flap can be equipped with an electrical insert strip for individual equipping with insert plates for power, data and media supply
- Table top depth: 650 mm
- 2 long foot sections
- 2 QUADRO columns 1000 mm high, with brush elements on the inside for cable entry
- 1 cross connection
Features
Stepless height adjustment
