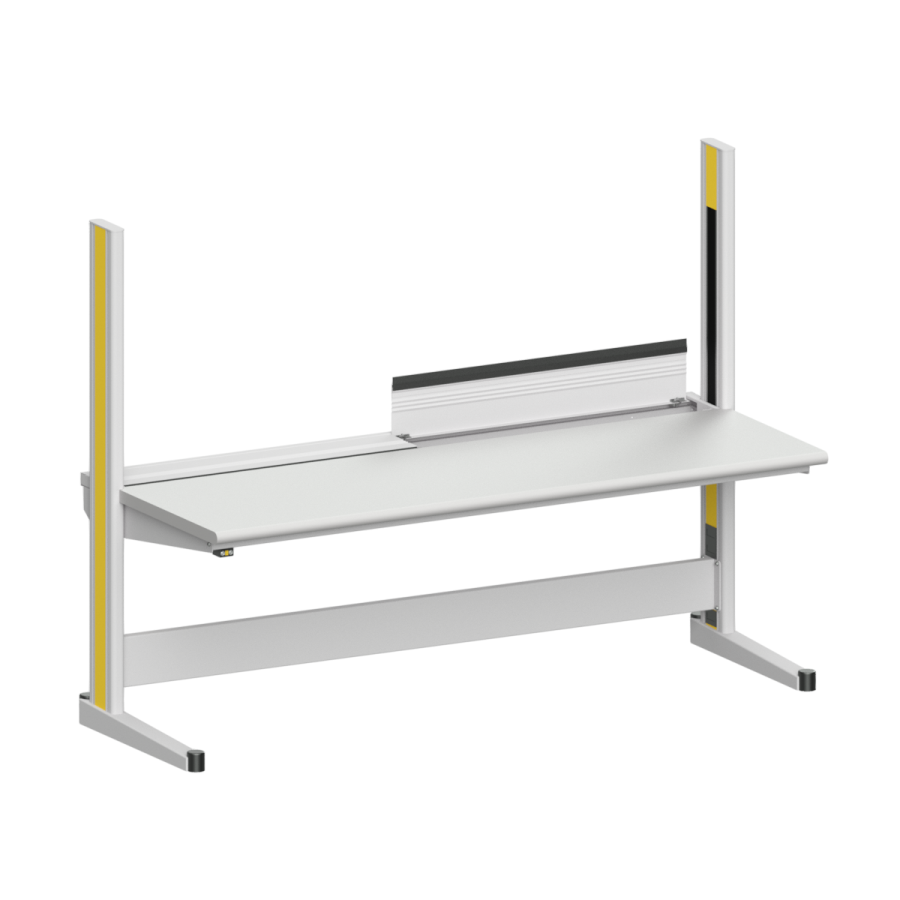

Basic element including cable tray with flap
ESD WORK TABLE QUADRO
Item number:
10.350.26
Width:
2135 mm
Height:
1600 mm
Color:
light gray (RAL 7035), decor parts: zinc yellow (RAL 1018)
Dimensions:
2135 x 880 x 1600 mm (WxDxH)
Features:
Stepless height adjustment
Description:
- consisting of:
- 1 table top 2135 x 880 x 40 mm (WxDxS), conductive ESD hard laminate (EN 438) with postforming edge at the front
- Cable tray in the rear area of the table top, easily accessible thanks to hinged covers
- Brushes embedded in the cover for easy cable routing when closed
- Side openings for access to the QUADRO columns
- the cable tray with flap can be equipped with an electrical insert strip for individual equipping with insert plates for power, data and media supply
- Table top depth: 650 mm
- 2 long foot sections
- 2 QUADRO columns 1600 mm high, with brush elements on the inside for cable entry
- 1 cross connection
- Earthing box in accordance with EN 61340-5-1 with two 10 mm push-button connections
- Central earthing point for connecting the ESD or protective earth
1
Features
Dimensions
2135 x 880 x 1600 mm (WxDxH)
Height
1600 mm
Width
2135 mm
Color
light gray (RAL 7035), decor parts: zinc yellow (RAL 1018)
Description
- consisting of:
- 1 table top 2135 x 880 x 40 mm (WxDxS), conductive ESD hard laminate (EN 438) with postforming edge at the front
- Cable tray in the rear area of the table top, easily accessible thanks to hinged covers
- Brushes embedded in the cover for easy cable routing when closed
- Side openings for access to the QUADRO columns
- the cable tray with flap can be equipped with an electrical insert strip for individual equipping with insert plates for power, data and media supply
- Table top depth: 650 mm
- 2 long foot sections
- 2 QUADRO columns 1600 mm high, with brush elements on the inside for cable entry
- 1 cross connection
- Earthing box in accordance with EN 61340-5-1 with two 10 mm push-button connections
- Central earthing point for connecting the ESD or protective earth
Features
Stepless height adjustment
