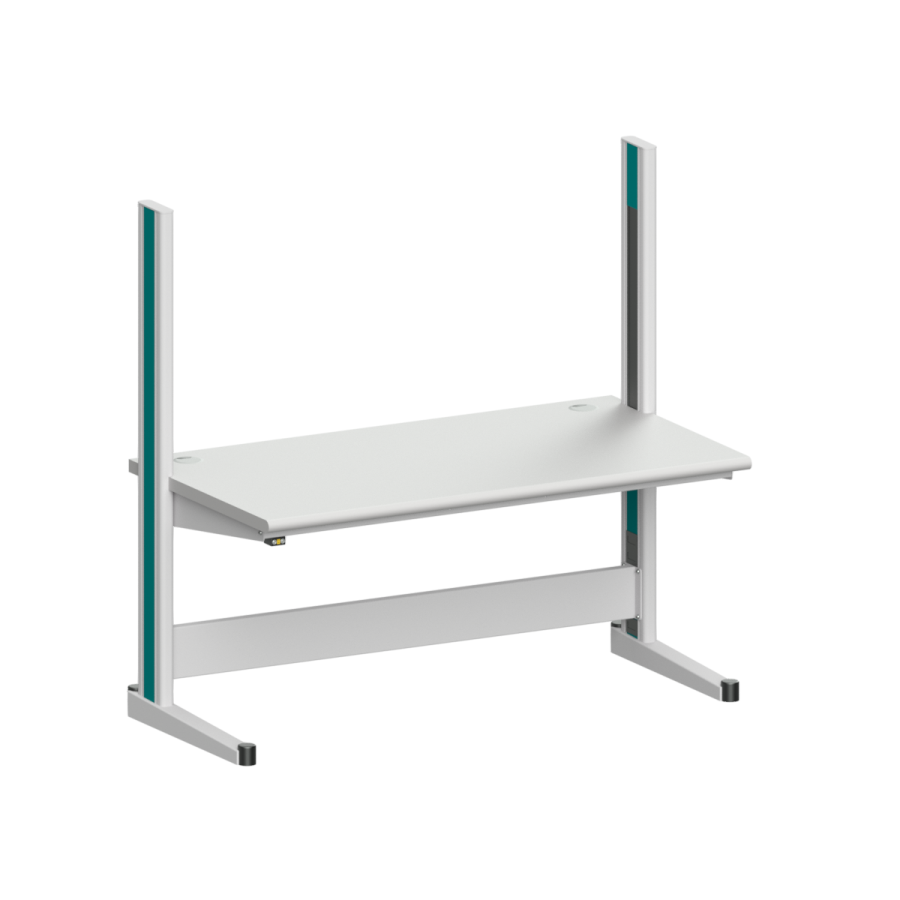

Basic element with cable tray
ESD WORK TABLE QUADRO
Item number:
10.230.22
Width:
1650 mm
Height:
1600 mm
Color:
light gray (RAL 7035), decor parts: water blue (RAL 5021)
Dimensions:
1650 x 880 x 1600 mm (WxDxH)
Features:
Stepless height adjustment
Description:
- consisting of:
- 1 table top 1650 x 880 x 40 mm (WxDxS), conductive ESD hard laminate (EN 438) with postforming edge at the front with 2 integrated cable bushings
- 1 cable tray
- 2 long foot sections
- 2 QUADRO columns 1600 mm high, with brush elements on the inside for cable entry
- 1 cross-connection
- Earthing box to EN 61340-5-1 with two 10 mm push-button connections
- Central earthing point for connecting the ESD or protective earth
1
Features
Dimensions
1650 x 880 x 1600 mm (WxDxH)
Height
1600 mm
Width
1650 mm
Color
light gray (RAL 7035), decor parts: water blue (RAL 5021)
Description
- consisting of:
- 1 table top 1650 x 880 x 40 mm (WxDxS), conductive ESD hard laminate (EN 438) with postforming edge at the front with 2 integrated cable bushings
- 1 cable tray
- 2 long foot sections
- 2 QUADRO columns 1600 mm high, with brush elements on the inside for cable entry
- 1 cross-connection
- Earthing box to EN 61340-5-1 with two 10 mm push-button connections
- Central earthing point for connecting the ESD or protective earth
Features
Stepless height adjustment
