HV / ELECTRIC MOTOR MEMO // CAR

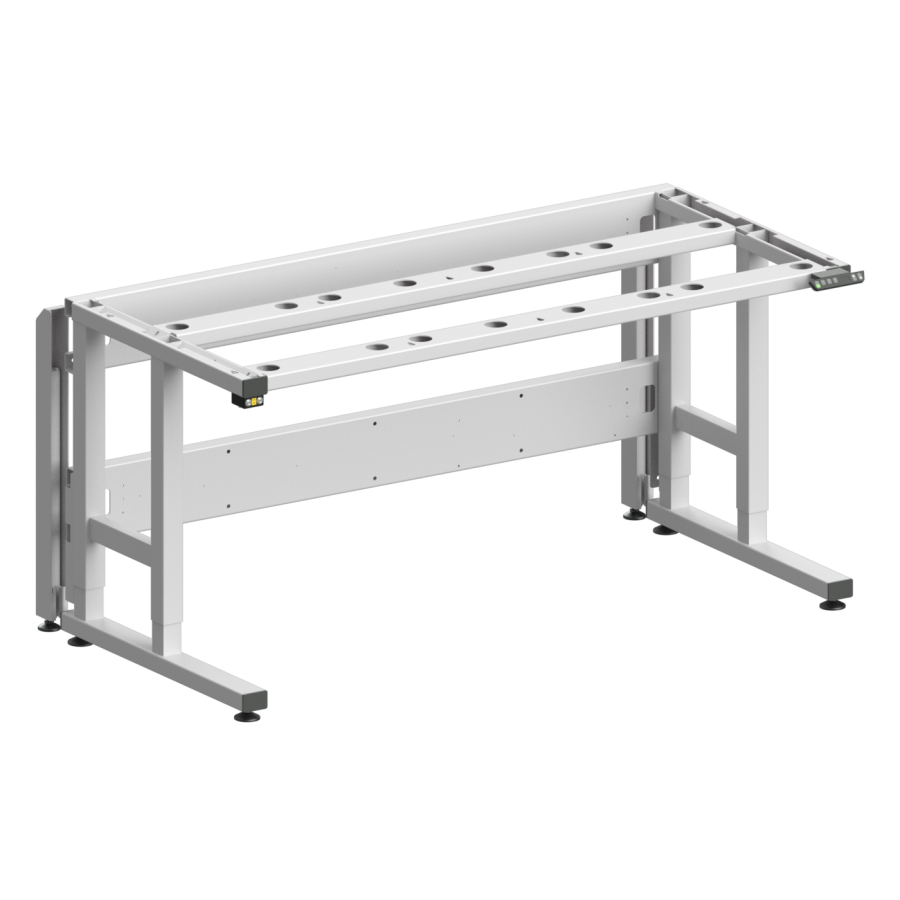

ESD TABLE FRAME SINTRO ANDOCK 1530
Item number:
26.325.50
Width:
1530 mm
Height:
740-1140 mm
Color:
light gray (RAL 7035)
Dimensions:
1530 x 750 x 740-1140 mm (WxDxH)
Features:
HV / ELECTRIC MOTOR MEMO // CAR
Description:
- Table and car drive up together
- max. total load 300 kg
- Design as standard but lower cross connection offset upwards
- for retracting the loading trolley (from table heights 780-900 mm)
1
Features
Dimensions
1530 x 750 x 740-1140 mm (WxDxH)
Height
740-1140 mm
Width
1530 mm
Color
light gray (RAL 7035)
Description
- Table and car drive up together
- max. total load 300 kg
- Design as standard but lower cross connection offset upwards
- for retracting the loading trolley (from table heights 780-900 mm)
- additionally with
- 2 lifting cylinders with holder for docking system (table and car)
- incl. mounting accessories
- 2 connection cables for control at the table
- A total of 6 lifting cylinders are controlled (table with special control)
- Conductive powder-coated light gray (RAL 7035)
- Earthing box with two 10 mm push-button connections
- Central earthing point for connecting the ESD or protective earth
Features
HV / ELECTRIC MOTOR MEMO // CAR
