EQUIPPED, COMPLETELY WIRED

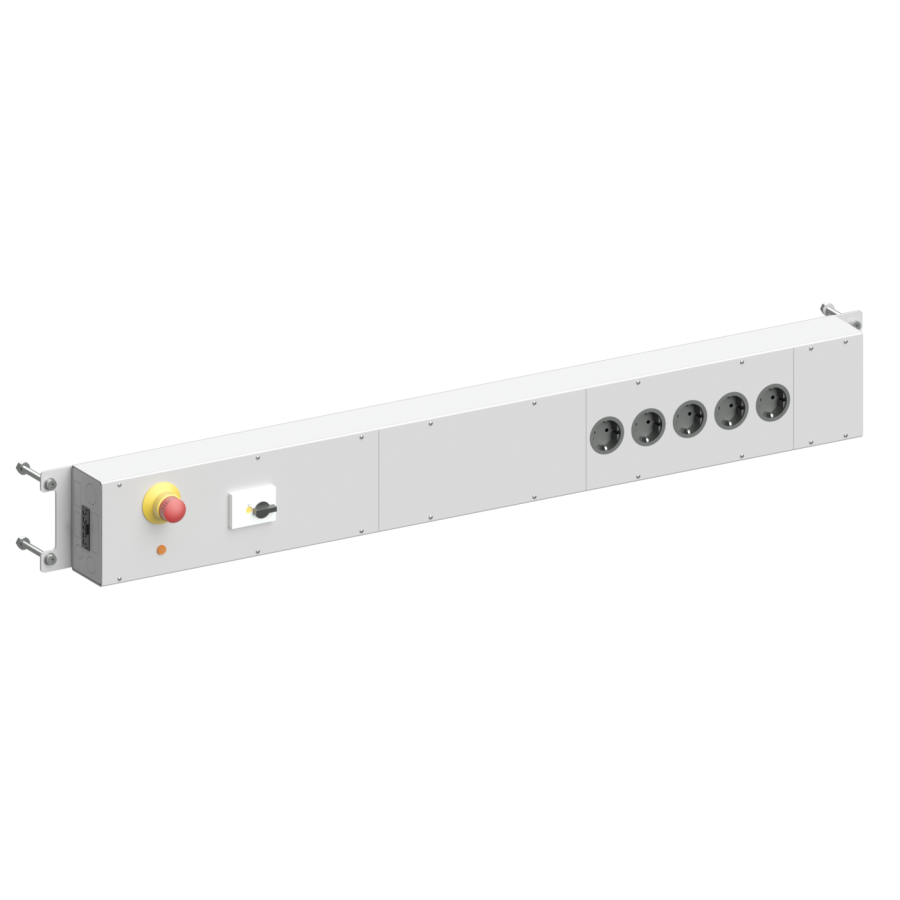

ELECTRICAL CONNECTION STRIP SINTRO
Item number:
39.470.70
Width:
1100 mm
Height:
140 mm
Color:
light gray
Dimensions:
1100 x 76 x 140 mm (WxDxH)
Features:
Fully wired
Description:
- Suitable for SINTRO table width 1230 mm
- Sturdy sheet metal housing in the form of a sill channel
1
Features
Dimensions
1100 x 76 x 140 mm (WxDxH)
Height
140 mm
Width
1100 mm
Color
light gray
Description
- Suitable for SINTRO table width 1230 mm
- Sturdy sheet metal housing in the form of a sill channel
- for height-variable mounting on the vertical struts and individual fitting with insert panels
- The individual modules can be replaced and extended at any time (WINSTA connector system) Equipment: - 10-16A circuit-breaker - undervoltage release - EMERGENCY STOP - 1 indicator light, 1-phase - 5 earthed sockets (D)
Features
Fully wired
