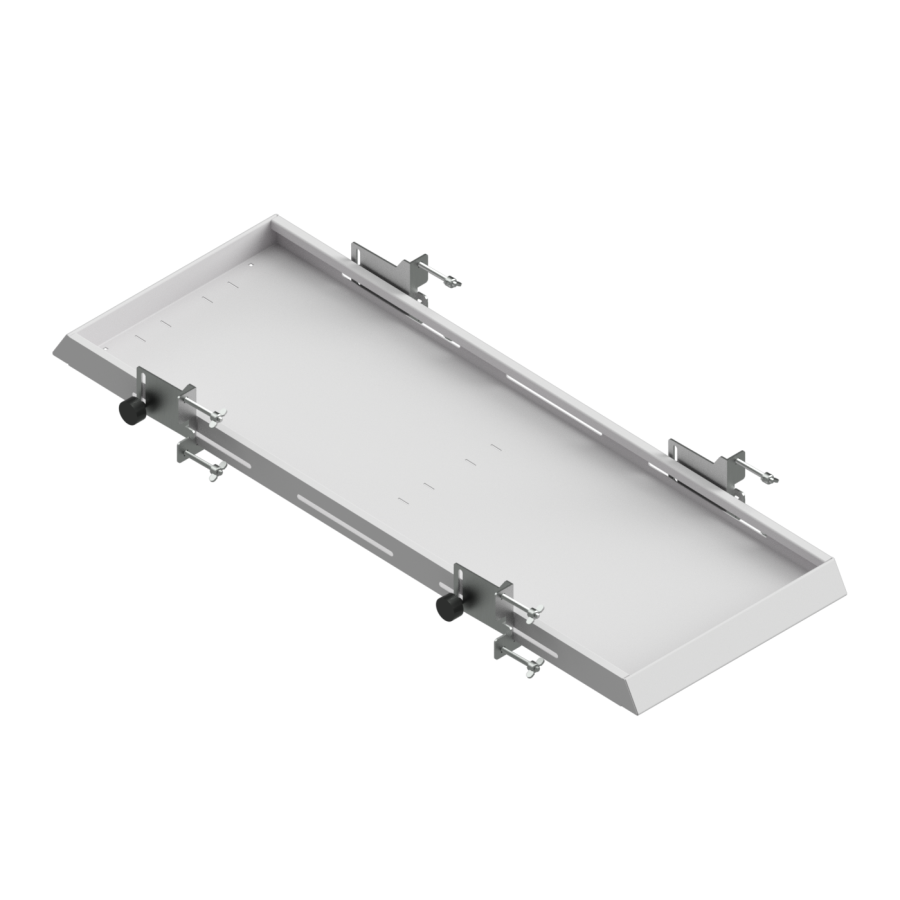

INFINITELY VARIABLE TILT
FIFO TRAY 510
Item number:
69.721.70
Width:
460 mm
Height:
55 mm
Color:
light gray (RAL 7035)
Dimensions:
460 x 1200 x 55 mm (WxDxH)
Features:
Variable height, depth and inclination
Description:
- FOR FIFO RACK W=510 mm
- the shelf can be bolted to the vertical struts of the FIFO base frame with variable height, depth and inclination
- The shelf can optionally be fitted with roller rails and/or dividers using a rasterized plug-in system
- the dimensions are primarily designed for use with clamshells and Euronorm containers
- with upstand
- Clear internal dimensions of the shelf 423 mm x 1203 mm (WxD)
- Load capacity / shelf: 75 kg
- Suitable for basic shelf B = 510 mm (68.529.70)
1
Features
Dimensions
460 x 1200 x 55 mm (WxDxH)
Height
55 mm
Width
460 mm
Color
light gray (RAL 7035)
Description
- FOR FIFO RACK W=510 mm
- the shelf can be bolted to the vertical struts of the FIFO base frame with variable height, depth and inclination
- The shelf can optionally be fitted with roller rails and/or dividers using a rasterized plug-in system
- the dimensions are primarily designed for use with clamshells and Euronorm containers
- with upstand
- Clear internal dimensions of the shelf 423 mm x 1203 mm (WxD)
- Load capacity / shelf: 75 kg
- Suitable for basic shelf B = 510 mm (68.529.70)
Features
Variable height, depth and inclination
