LID ESD-DIRECT COATED

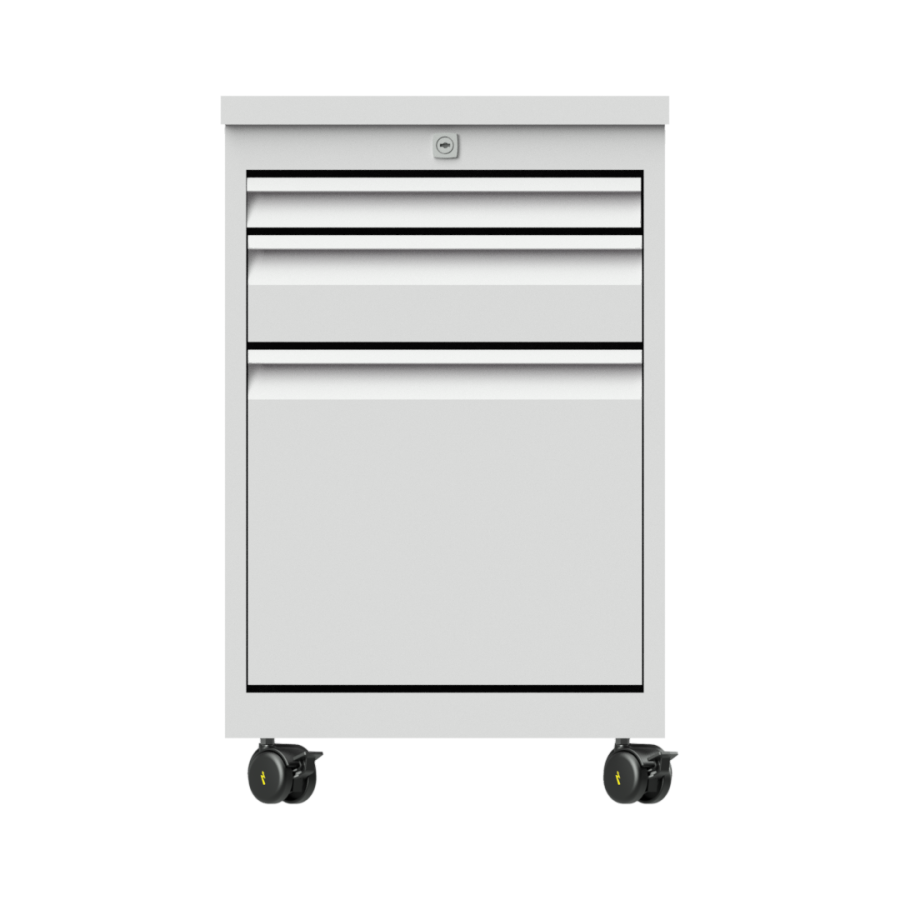

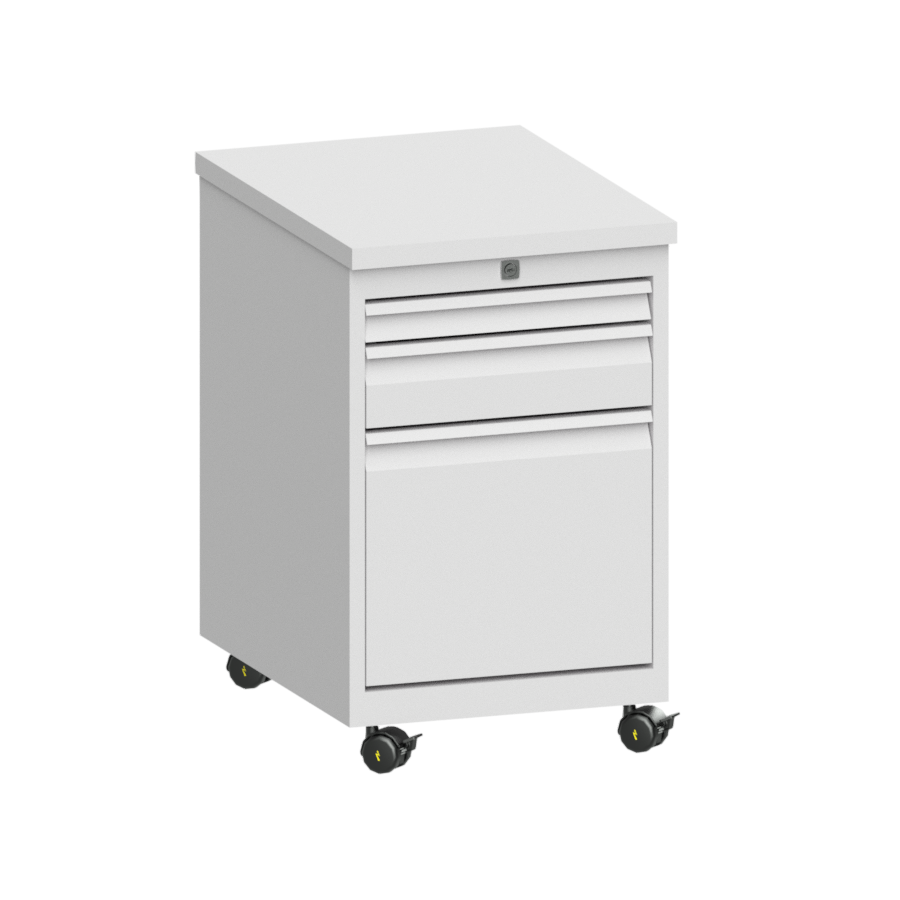

DRAWER UNIT F0 MOBILE ESD
Item number:
32.320.34
Width:
418 mm
Height:
670 mm
Color:
light gray (RAL 7035)
Dimensions:
418 x 540 x 670 mm (WxDxH)
Features:
TZ 1 x 1 U, TZ 1 x 2 U, TZ 1 x 6 U
Description:
- TZ 1 x 1 U, TZ 1 x 2 U, TZ 1 x 6 U1 drawer 1 U (54 mm)1 drawer 2 U (108 mm)1 drawer 6 U (324 mm)
- 4 swivel castors (Ø 52 mm), 2 with brakes
- Robust sheet steel housing with central locking
1
Features
Dimensions
418 x 540 x 670 mm (WxDxH)
Height
670 mm
Width
418 mm
Color
light gray (RAL 7035)
Description
- TZ 1 x 1 U, TZ 1 x 2 U, TZ 1 x 6 U1 drawer 1 U (54 mm)1 drawer 2 U (108 mm)1 drawer 6 U (324 mm)
- 4 swivel castors (Ø 52 mm), 2 with brakes
- Robust sheet steel housing with central locking
- Internal drawer dimensions: 330 x 450 mm (W x D)
- 4/5 pull-out, drawer runners with steel ball bearings
- Pull-out safety device: only one drawer can be opened at a time
- Load capacity / drawer: 30 kg
- ESD-compliant
- Conductive powder coating, light gray (RAL 7035)
Features
TZ 1 x 1 U, TZ 1 x 2 U, TZ 1 x 6 U
